Laterally Loaded Piles

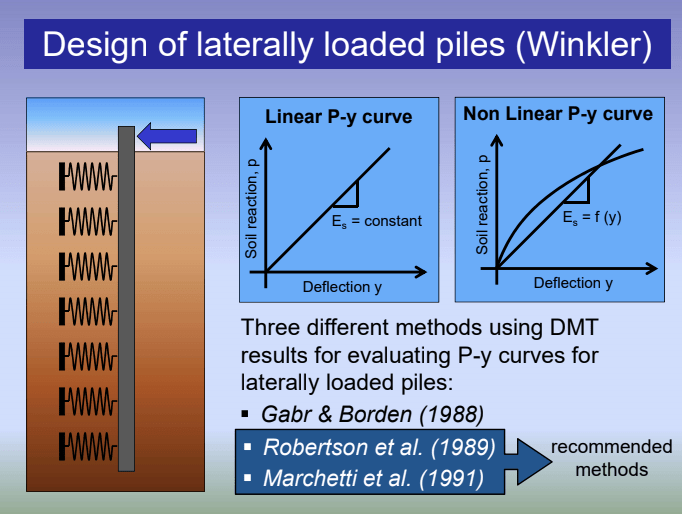

Two methods have been developed for estimating by DMT the p-y curves for the case of short-term, one-way static first-time monotonic loading (Robertson et al. 1987, Marchetti et al. 1991). The Robertson et al. 1987 method is an adaptation of the early methods for estimating p-y curves, which utilized soil properties obtained from laboratory data. The Robertson et al. method replaced these laboratory properties with equivalent soil properties, estimated in situ by the DMT.
Marchetti et al. (1991) streamlined the Robertson et al. (1987) method for clay (anchored to the Skempton e 50 – Matlock cubic parabola approach), and proposed a more direct procedure for predicting the p-y curves (only for clay). The Marchetti et al. 1991 method adopted, as curve p-y, an hyperbolic tangent law. The initial slope is estimated based on the dilatometer modulus ED, and the ordinate of the horizontal asymptote is estimated based on the first DMT corrected reading po.
Validations

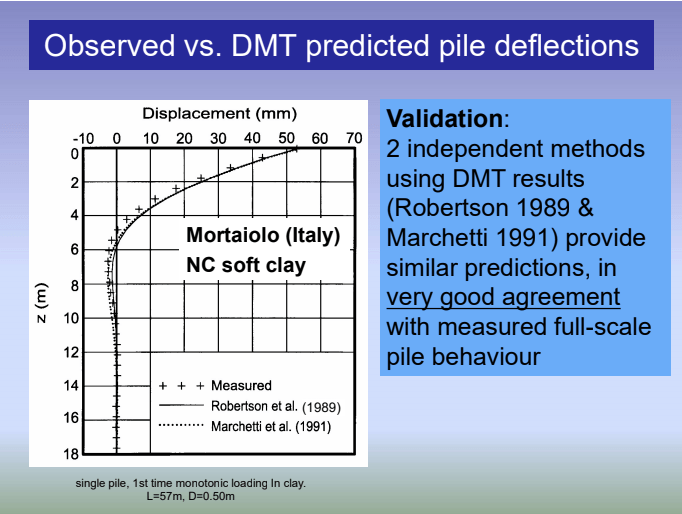

(NGI, Georgia Tech and tests in Virginia sediments) have shown that the two methods provide similar predictions, and that the predictions are in quite good agreement with the observed behavior. Since the accuracy of the two methods appears similar, use of the Robertson method (covering both sands and clays) is adequate. A favourable aspect of DMT based methods is the availability of many in situ DMT data even at shallow depths, i.e. in the layers dominating the lateral pile response.
Monopiles for wind turbines
Description
Cyclic DMT tests
Suggested Approach
Description
In order to design the piles, cyclic p-y curves are necessary, for the frequencies of the wave and of the structure. The DMT, as it is, permits the applications of many load-unload cycles at any given depth. However, as today, design methods for translating the p decay in front of the membrane to the p decay on the shaft of a pile have not been developed. Research in this direction has just been initiated.
Cyclic DMT tests
Initial trial experiments have been conducted recently (Marchetti 2015). They consisted in obtaining, in addition to the usual A and B pressure readings, subsequent pairs of A and B values, by repeating at any given depth several times the expansion of the membrane. The aim of this study is to acquire indications on the decay of A and B with the number of cycles. It has been found that, after an initial decay, stabilization of A and B occurs after a relatively small number of cycles.
Suggested Approach
A way of attacking the problem could possibly be to first predict monotonic first-time loading pile behavior, that DMT appears to predict well. Then the p-y curves could be softened by applying reduction factors. Usual DMT results plus some information derived from cyclic DMT could possibly help in estimating the reduction factors.
Some Comments
The Flat Dilatometer was originally conceived having in mind, as a primary objective, the soil modulus for laterally loaded piles (Marchetti, 1977). Similarities between a laterally loaded driven pile and a dilatometer are obvious. However, for many years after the DMT conceivement, much of the research and use was directed towards estimating design parameters. It was only some 15 years later that DMT methods for laterally loaded piles were developed.
More on the origin of the Flat Dilatometer in:
- Marchetti 1975: Measurement of Horizontal Soil deformability.
- Marchetti 2006: Origin of the Flat Dilatometer.
References
- Robertson, P.K., Davies, M.P. & Campanella, R.G. (1987). “Design of Laterally Loaded Driven Piles Using the Flat Plate Dilatometer”. Geotechnical Testing Journal, Vol. 12, No. 1: 30-38.
- Marchetti, S., Totani, G., Calabrese, M. & Monaco, P. (1991). “P-y curves from DMT data for piles driven in clay”. Proc. 4th Int. Conf. Deep Foundation Inst. on Piling and Deep Foundations, Vol. 1: 263-272. Stresa, Italy.
